In our previous article, we established that the longevity of a CO2 laser tube (such as RECI, eCO2, or EFR) depends directly on proper cooling. However, today we want to broaden your horizons, because industrial water coolers or chillers are not meant only for lasers!
These very same cooling systems are absolutely critical for CNC router spindles, UV LED printers, TIG/MIG welding equipment, and even laboratory apparatus. Heat is the number one enemy of machinery, regardless of whether it is generated by laser gases or a CNC spindle rotating at thousands of revolutions per minute.
The four most popular models on the market are CW-3000, CW-5000, CW-5200, and CW-6000. But did you know that one of them is not actually a real chiller, while another is created specifically for heavy industry? Let’s examine their differences so you don’t make an expensive mistake!
1. CW-3000: Passive radiator
The biggest mistake beginners make is assuming that the CW-3000 is a full-fledged chiller.
-
How it works: Inside the CW-3000, there is no compressor and no refrigerant (Freon). It consists of a water pump, a radiator, and a large fan. It works exactly like a car radiator – it cools the water by blowing ambient air through it.
-
Cooling capacity: Its capacity is denoted as 50W/°C. This means that this device will never be able to cool water below ambient temperature. If your workshop is 25°C, then 25°C warm water will circulate in the system.
-
What it is suitable for: * Lasers: Low-power CO2 lasers (K40, 40W, max. 50W) for short engraving jobs.
-
CNC equipment: Small CNC spindles with power from 0.8kW to 1.5kW, which are not overloaded for long periods.
-
2. CW-5000: The industry "Gold Standard"
This is where real cooling begins. The CW-5000 is an active chiller.
-
How it works: This device is like a small refrigerator. It has a built-in full-fledged compressor and refrigerant system. It can cool water far below ambient temperature and stably maintain the set ideal 15°C - 20°C.
-
Cooling capacity: Its cooling capacity is approximately 800W.
-
What it is suitable for: * Lasers: Ideally suited for machines with a single tube with a power of 60W to 80W (also 100W with moderate load).
-
CNC and other equipment: Excellently cools standard water-cooled CNC spindles with power 1.5kW to 3.0kW. Also suitable for smaller UV printing and welding equipment.
-

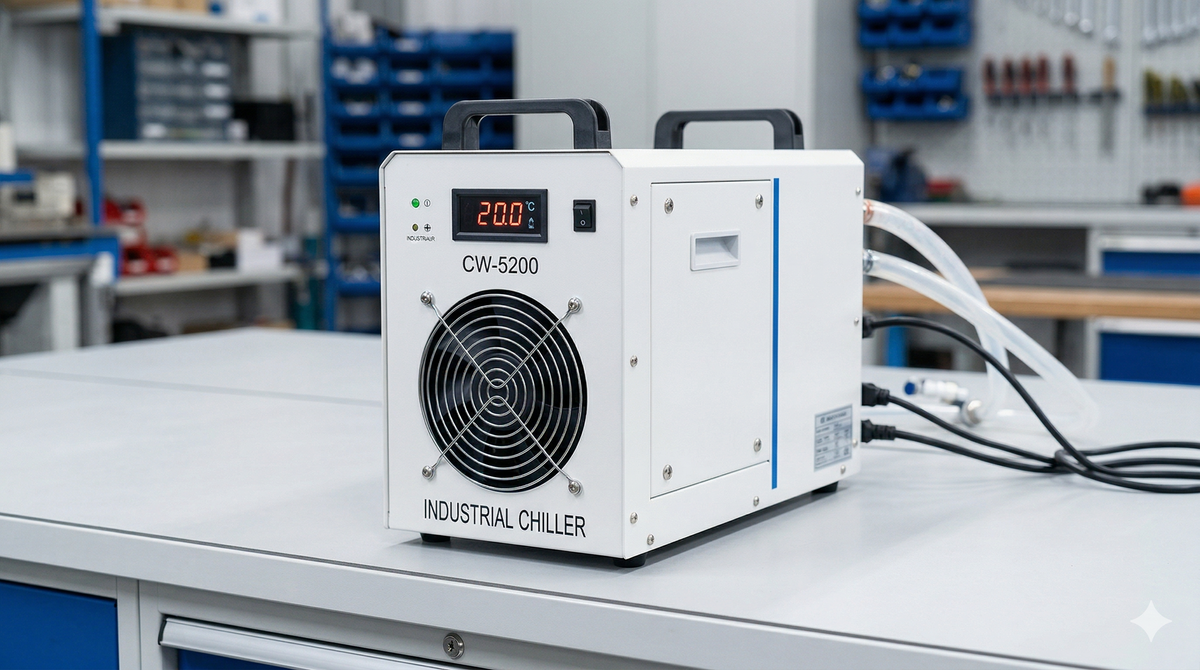

3. CW-5200: Increased power
Visually, the CW-5200 looks almost identical to the CW-5000 model, but inside it hides much more serious "muscle mass".
-
How it works: This is also an active refrigerant chiller, but it has a significantly larger and more powerful compressor, as well as a higher capacity cooling circuit.
-
Cooling capacity: Its cooling capacity reaches approximately 1400W (almost twice as much as the CW-5000). It can "bring down" the temperature much faster under high-load conditions.
-
What it is suitable for: * Lasers: Powerful industrial equipment with a tube power of 100W, 130W, 150W.
-
CNC and other equipment: Powerful CNC spindles (3.0kW to 5.0kW or multi-spindle systems), intensive TIG/MIG welding, and industrial UV printers.
-
4. CW-6000: For simultaneous cooling of two devices
When production volumes grow and equipment becomes massive, the CW-6000 enters the game. This is a true industrial heavyweight with dual circulation.
-
How it works: This is a high-performance refrigerant chiller that is often equipped with a dual water circulation system (two inlets and two outlets). This allows for physically directing two independent cooling flows.
-
Cooling capacity: Its cooling capacity is impressive – approximately 3000W.
-
What it is suitable for: * Lasers: Especially created for cooling two simultaneously operating tubes (for example, two 100W, 130W, or 150W tubes).
-
CNC and other equipment: Large multi-spindle CNC machining centers, powerful metalworking milling spindles, large-format UV LED curing systems, and any production line that generates massive heat for hours on end.
-
Conclusion: Protect your investment!
Whether your daily life involves cutting acrylic with a CO2 laser machine or milling solid wood with a CNC machine – do not economize on cooling! By trying to cool a serious CNC spindle or a powerful CO2 tube with a simple CW-3000 radiator, you risk damaging the equipment irreversibly within the very first months of serious load.
A properly chosen active chiller will pay for itself by keeping your expensive equipment in working order and preventing unplanned downtime.
