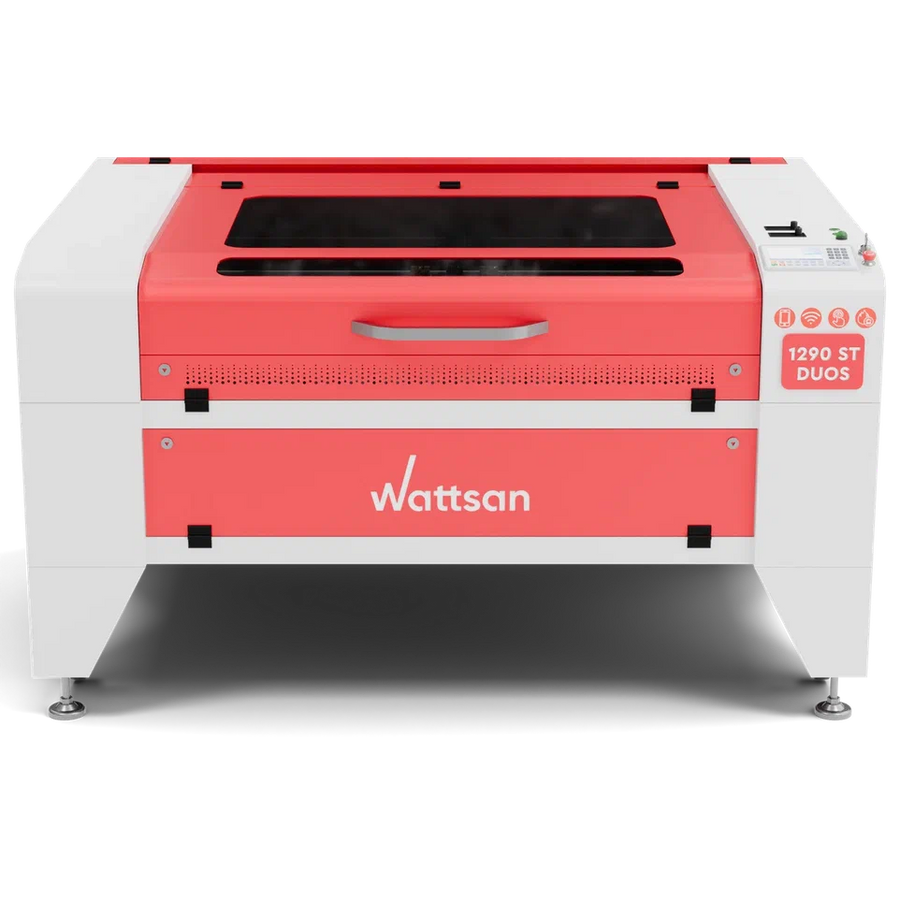

Wattsan 1290 DUOS ST
CNC laser wood cutting machine, DUOS ST series with two laser tubes.
| Working area | 1200 x 900 mm |
|---|---|
| Laser tube power | 100-120 W |
| Max. speed | 500 mm |
| Dimensions | 1800 x 1400 x 660 mm + 343 mm (if on wheels) |
| Net weight | 229 kg |
| Package size | 1900 x 1660 x 840 mm |
| Package weight | 393 kg |
Product Features

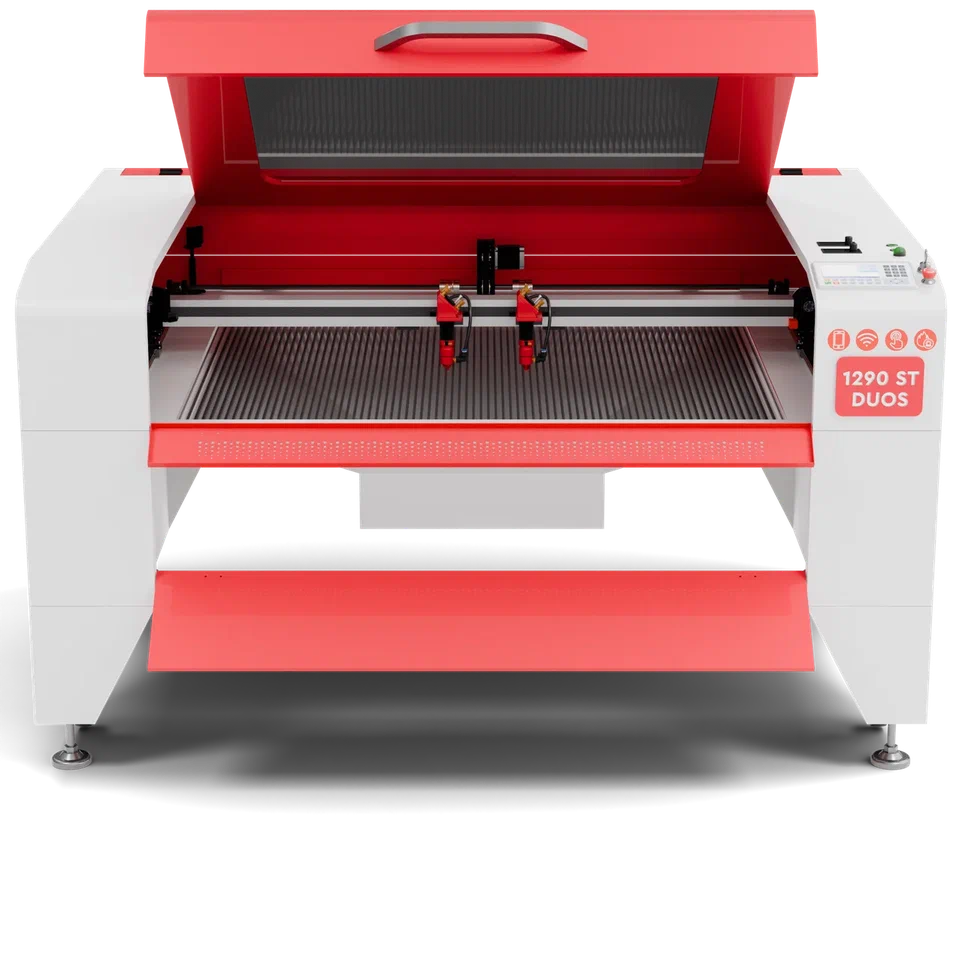

The DUOS configuration adds a second synchronous laser head that works in parallel with the first, cutting two identical parts simultaneously. This effectively doubles production output without increasing cycle time. Both heads maintain identical focus and alignment, ensuring consistent quality across all parts.
The 1290 series offers a large 1200 x 900 mm working table, suitable for full-sheet plywood, large acrylic panels, and bulk leather cutting. The format handles standard sheet sizes with minimal waste, making it ideal for furniture production, sign making, and medium-scale manufacturing.
With 100–120W of laser power, the 1290 cuts through wood up to 20 mm and acrylic up to 25 mm in a single pass. The powerful tube combined with a 25 mm ZnSe focusing lens and D25 molybdenum mirrors delivers a focused beam with excellent edge quality on both cutting and engraving tasks.
The 1290 ST and LT use stepper motors with real-time position feedback for accuracy up to ±0.03 mm. Reinforced mounts and a central Y-axis motor prevent gantry misalignment. The waste collection compartment protects lifting mechanics from debris and improves smoke extraction.
