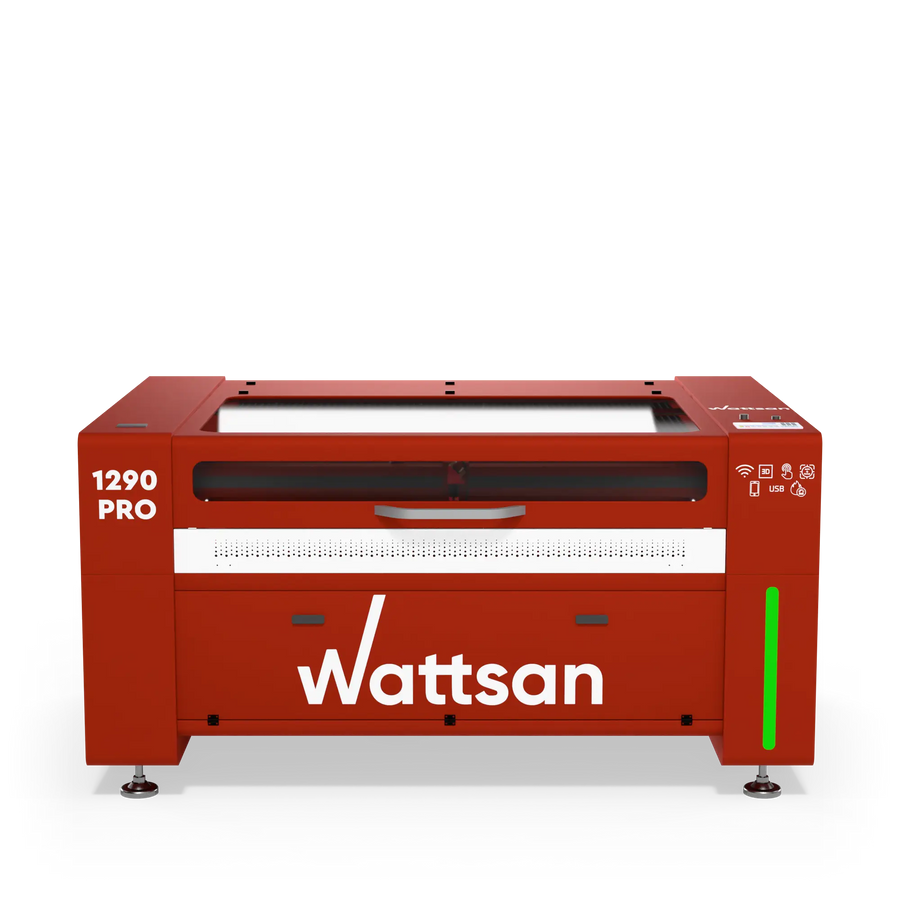

Wattsan 1290 PRO (New Model 2025)
CO2 CNC laser engraving and cutting machine, Pro series, with Lasea F4 / Reci W4 tube and 25 mm mirror diameter.
| Working area | 1200 x 900 mm |
|---|---|
| Laser tube power | 100-120 W |
| Max. speed | up to 1000 mm |
| Dimensions | 1850 x 1560 x 960 mm |
Additional information: Laser tube: Lasea F4, Reci W4; Mirror Diameter: 25 mm; ZnSe lens: ZnSe D20 f50; Focus distance: 50 mm; Laser tube lifetime: 10000 h; Minimum engraving size: 1.5 x 1.5 mm
Product Features
The 1290 PRO upgrades the standard 1290 with easy servo motors with real-time feedback, eliminating missed steps and delivering ±0.03 mm positioning accuracy. A built-in chiller keeps the system compact and eliminates external cooling equipment, while the CNC-driven lift table handles materials up to 100 kg.
The PRO series features Wattsan SAS (Safety Assurance System) with the FOX (Fire Overwatch Expert) module — a proprietary system that instantly detects smoke and fire in the working area and triggers a loud facility-wide alarm. This goes far beyond standard safety switches and is designed for industrial workshop environments.
The 6090 PRO uses servo motors with real-time position feedback instead of standard steppers. This eliminates missed steps, improves positioning accuracy to ±0.03 mm, and allows reliable operation at higher speeds — up to 1000 mm/s engraving speed — without loss of quality.
All moving parts including the gantry are fully enclosed to block dust and ensure vibration-free operation. A protective belt inside the robust portal adds extra security. The smart control screen provides intuitive operation, and an ammeter allows precise real-time power monitoring during cutting.
