Wattsan

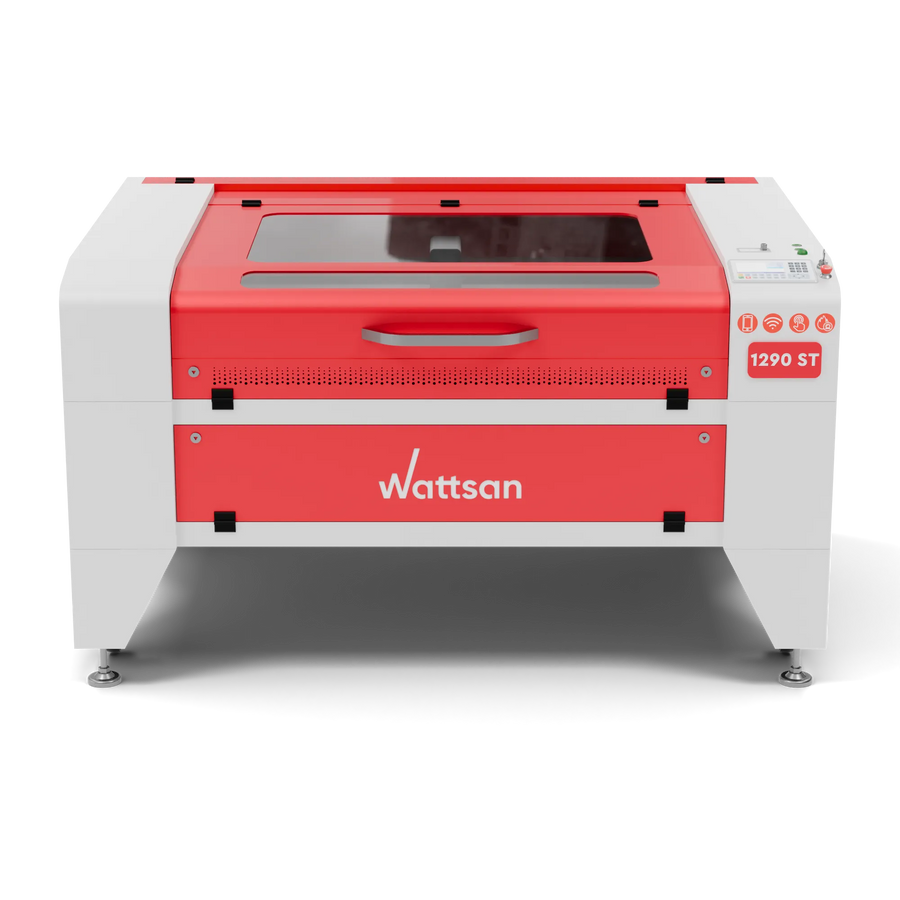

Wattsan 1290 ST (2025)
Laser engraver and cutter machine for wood and leather, ST series.
| Working area | 1200 x 900 mm |
|---|---|
| Laser tube power | 100-120 W |
| Max. speed | 500 mm |
| Dimensions | 1800 x 1400 x 660 mm + 343 mm (if on wheels) |
| Net weight | 219 kg |
| Package size | 1910 x 1500 x 840 mm |
| Package weight | 368 kg |
Product Features
The 1290 series offers a large 1200 x 900 mm working table, suitable for full-sheet plywood, large acrylic panels, and bulk leather cutting. The format handles standard sheet sizes with minimal waste, making it ideal for furniture production, sign making, and medium-scale manufacturing.
With 100–120W of laser power, the 1290 cuts through wood up to 20 mm and acrylic up to 25 mm in a single pass. The powerful tube combined with a 25 mm ZnSe focusing lens and D25 molybdenum mirrors delivers a focused beam with excellent edge quality on both cutting and engraving tasks.
The 1290 ST and LT use stepper motors with real-time position feedback for accuracy up to ±0.03 mm. Reinforced mounts and a central Y-axis motor prevent gantry misalignment. The waste collection compartment protects lifting mechanics from debris and improves smoke extraction.
