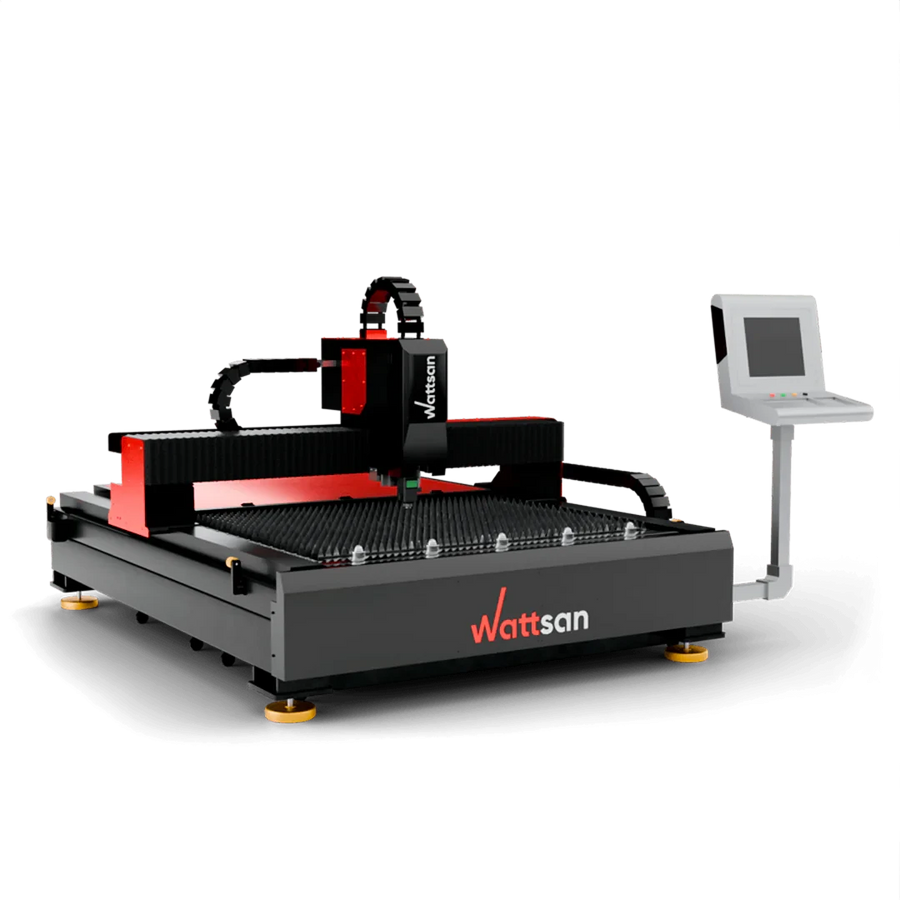

Wattsan 1313 A
Price excl. VAT
Wattsan 1313 A ir kompakts un pieejams sākuma līmeņa šķiedru lāzera metāla griezējs ar 1300×1300 mm darba zonu, kas paredzēts maza un vidēja mēroga plānu metāla detaļu ražošanai. Ar līdz pat 1500 W lāzera jaudu tas griež oglekļa tēraudu, nerūsējošo tēraudu, cinkotu tēraudu, alumīniju un varu līdz 3–4 mm biezumā ar ātrumu 80 m/min. A sērijas rāmis ir izgatavots no biezsienu tērauda caurulēm, kas izklātas ar šamota ķieģeļiem papildu termiskajai izturībai, savukārt aviācijas alumīnija portāls nodrošina augstu stingrību pie maza svara — padarot 1313 A par pieejamu, taču uzticamu iekārtu uzņēmumiem, kas uzsāk darbu metāla lāzergriešanā.
Produkta funkcijas
All Wattsan fiber metal cutters use HIWIN linear guide rails on all axes — the industry standard for high-precision, high-load motion. Yaskawa and Leadshine servo motors with planetary gearboxes drive the gantry, delivering accelerations up to 1.5G, minimal vibration, and reliable positioning accuracy of ±0.03 mm in continuous 24/7 production.
Wattsan metal cutters run CYPCUT — professional fiber laser cutting software with FLYCUT (fast thin-sheet cutting without head lift), RINGCUT (clean corners without melting), NESTING (optimal sheet layout), EDGESEEK (automatic sheet position detection), MICRO JOINT (part retention during cutting) and COEDGE (shared-line cutting for faster batch production).
Every Wattsan metal cutter frame undergoes multi-stage heat treatment in a furnace to release internal welding stress. This eliminates deformation and geometry drift over time, guaranteeing cutting accuracy of ±0.03 mm for 10 years of continuous operation without recalibration.
Wattsan fiber cutters are equipped with laser heads from Raytools, BOCI or Precitec — industry-leading brands with auto-focus, capacitive height sensing, and collision protection. Upper and lower protective lenses shield internal optics from spatter. The QBH connector between fiber cable and head prevents beam return, protecting the laser source.
