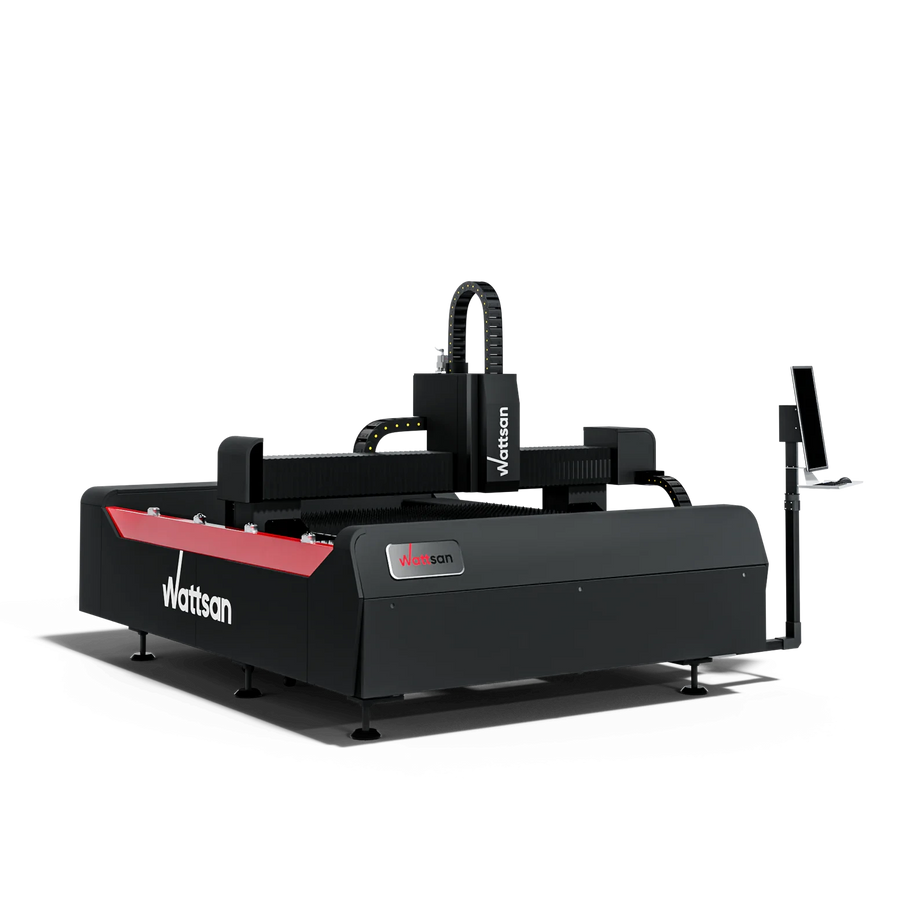

Wattsan 1313 S
The Wattsan 1313 S is a mid-range fiber laser metal cutter with a reinforced S-series frame designed for cutting thick sheet metals at high production volumes. Its 1300×1300 mm working area accommodates full aluminum, copper, stainless steel and carbon steel sheets up to 12 mm thick, with travel speeds up to 120 m/min. The titanium-ribbed gantry and 10–12 mm thick heat-treated bed reduce vibration significantly, maintaining ±0.03 mm accuracy in continuous 24/7 operation.
Product Features
All Wattsan fiber metal cutters use HIWIN linear guide rails on all axes — the industry standard for high-precision, high-load motion. Yaskawa and Leadshine servo motors with planetary gearboxes drive the gantry, delivering accelerations up to 1.5G, minimal vibration, and reliable positioning accuracy of ±0.03 mm in continuous 24/7 production.
Wattsan metal cutters run CYPCUT — professional fiber laser cutting software with FLYCUT (fast thin-sheet cutting without head lift), RINGCUT (clean corners without melting), NESTING (optimal sheet layout), EDGESEEK (automatic sheet position detection), MICRO JOINT (part retention during cutting) and COEDGE (shared-line cutting for faster batch production).
Every Wattsan metal cutter frame undergoes multi-stage heat treatment in a furnace to release internal welding stress. This eliminates deformation and geometry drift over time, guaranteeing cutting accuracy of ±0.03 mm for 10 years of continuous operation without recalibration.
The S series upgrades to a 10–12 mm thick reinforced steel frame with titanium-ribbed aluminum gantry, enabling laser sources up to 6 kW and cutting speeds up to 120 m/min. It handles metals up to 12 mm thick with zonal smoke extraction — concentrating suction where the laser cuts for cleaner results and longer component life.
Wattsan fiber cutters are equipped with laser heads from Raytools, BOCI or Precitec — industry-leading brands with auto-focus, capacitive height sensing, and collision protection. Upper and lower protective lenses shield internal optics from spatter. The QBH connector between fiber cable and head prevents beam return, protecting the laser source.
