Wattsan 1530 A
Price excl. VAT

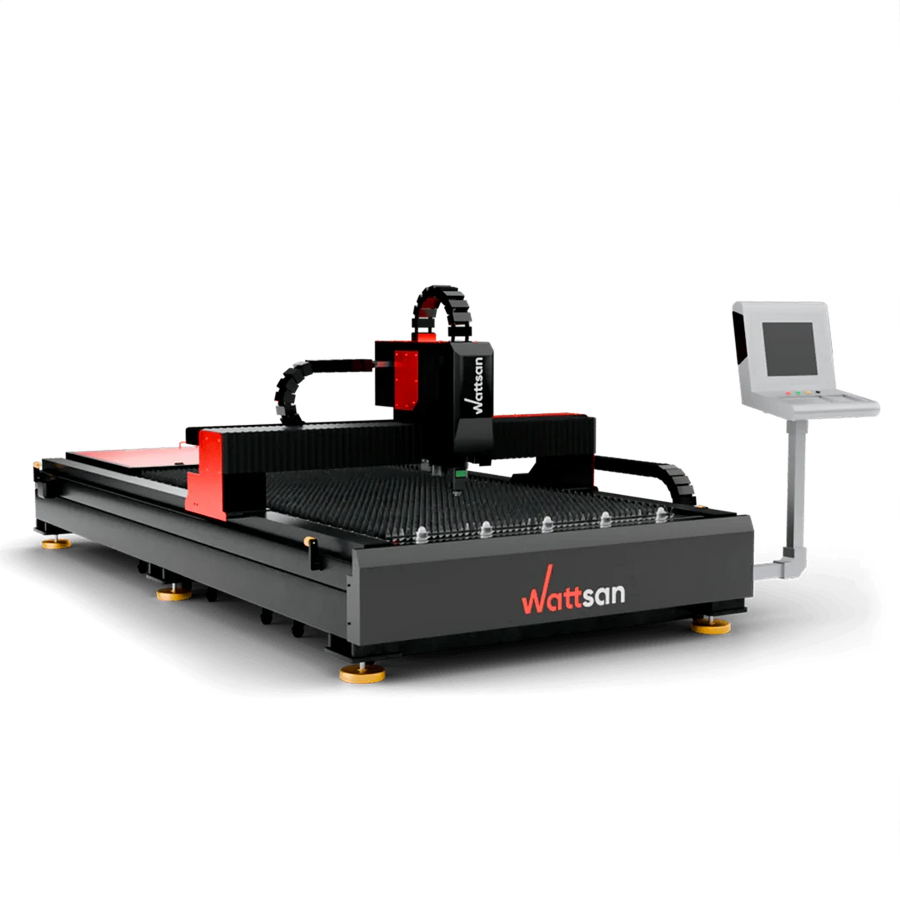

The Wattsan 1530 A is a cost-effective large-format fiber laser metal cutter with a 1500×3000 mm working area, suited for medium-size production in mechanical engineering, automotive parts, electrical equipment and advertising manufacturing. With up to 1500W laser power, it cuts carbon steel, stainless steel, galvanized steel, copper and aluminum up to 25 mm thick at 80 m/min. The lightweight yet durable A-series frame uses thick-walled steel tubes with firebrick lining and roll-out carts, while the aviation-aluminum gantry delivers high speed with low weight — making this machine the most accessible Wattsan metal cutter for entry-level industrial use.
Produkta funkcijas
All Wattsan fiber metal cutters use HIWIN linear guide rails on all axes — the industry standard for high-precision, high-load motion. Yaskawa and Leadshine servo motors with planetary gearboxes drive the gantry, delivering accelerations up to 1.5G, minimal vibration, and reliable positioning accuracy of ±0.03 mm in continuous 24/7 production.
Wattsan metal cutters run CYPCUT — professional fiber laser cutting software with FLYCUT (fast thin-sheet cutting without head lift), RINGCUT (clean corners without melting), NESTING (optimal sheet layout), EDGESEEK (automatic sheet position detection), MICRO JOINT (part retention during cutting) and COEDGE (shared-line cutting for faster batch production).
Every Wattsan metal cutter frame undergoes multi-stage heat treatment in a furnace to release internal welding stress. This eliminates deformation and geometry drift over time, guaranteeing cutting accuracy of ±0.03 mm for 10 years of continuous operation without recalibration.
Wattsan fiber cutters are equipped with laser heads from Raytools, BOCI or Precitec — industry-leading brands with auto-focus, capacitive height sensing, and collision protection. Upper and lower protective lenses shield internal optics from spatter. The QBH connector between fiber cable and head prevents beam return, protecting the laser source.
