Wattsan

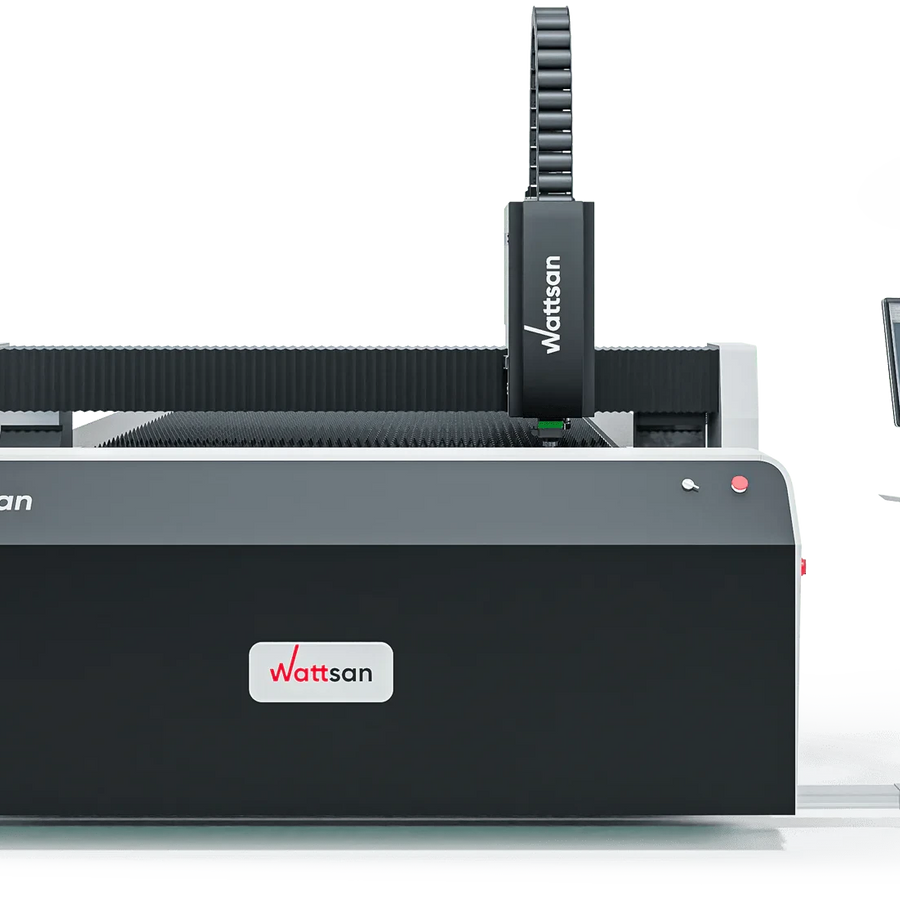

Wattsan 1530 S
The Wattsan 1530 S is a production-grade fiber laser metal cutter with a 1500×3000 mm working area and up to 6000W laser power, built for cutting thick metals at high volumes. Carbon steel, stainless steel, aluminum, galvanized steel, copper and brass up to 12 mm are processed at speeds up to 120 m/min. The reinforced S-series frame with titanium-ribbed gantry and zonal smoke extraction delivers consistent ±0.03 mm accuracy across full-sheet production runs in demanding industrial environments.
Product Features
All Wattsan fiber metal cutters use HIWIN linear guide rails on all axes — the industry standard for high-precision, high-load motion. Yaskawa and Leadshine servo motors with planetary gearboxes drive the gantry, delivering accelerations up to 1.5G, minimal vibration, and reliable positioning accuracy of ±0.03 mm in continuous 24/7 production.
Wattsan metal cutters run CYPCUT — professional fiber laser cutting software with FLYCUT (fast thin-sheet cutting without head lift), RINGCUT (clean corners without melting), NESTING (optimal sheet layout), EDGESEEK (automatic sheet position detection), MICRO JOINT (part retention during cutting) and COEDGE (shared-line cutting for faster batch production).
Every Wattsan metal cutter frame undergoes multi-stage heat treatment in a furnace to release internal welding stress. This eliminates deformation and geometry drift over time, guaranteeing cutting accuracy of ±0.03 mm for 10 years of continuous operation without recalibration.
The S series upgrades to a 10–12 mm thick reinforced steel frame with titanium-ribbed aluminum gantry, enabling laser sources up to 6 kW and cutting speeds up to 120 m/min. It handles metals up to 12 mm thick with zonal smoke extraction — concentrating suction where the laser cuts for cleaner results and longer component life.
Wattsan fiber cutters are equipped with laser heads from Raytools, BOCI or Precitec — industry-leading brands with auto-focus, capacitive height sensing, and collision protection. Upper and lower protective lenses shield internal optics from spatter. The QBH connector between fiber cable and head prevents beam return, protecting the laser source.
Product showcase
