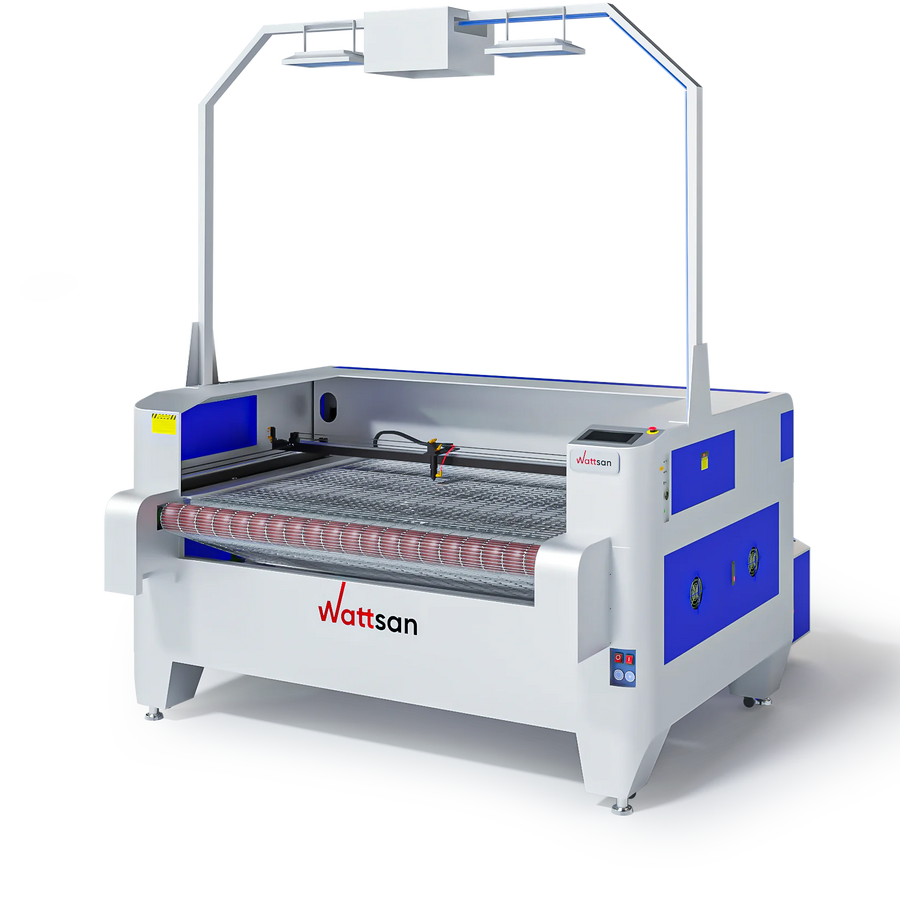

Wattsan 1610 Cam Conveyer
Laser cutter machine for fabric and leather with conveyor system.
| Working area | 1600 x 1000 mm |
|---|---|
| Laser tube power | 100-120 W |
| Max. speed | 500 mm |
| Dimensions | 2200 x 2000 x 1450 mm |
| Net weight | 730 kg |
| Package size | 2320 x 2200 x 1530 mm |
| Package weight | 530 kg |
Product Features
The conveyor system enables continuous roll-to-roll processing of fabric, leather, film, and other flexible materials without manual repositioning. The motorized conveyor feeds material through the machine automatically, dramatically increasing throughput for large-volume textile and leather cutting operations.
The Cam Conveyor models are equipped with an industrial CCD camera that automatically recognizes and scans material contours and printed patterns. The camera transfers the contour data to the cutting software, where the operator can make adjustments before sending the job to the machine — enabling precise cutting around pre-printed designs.
The 1610 series handles full-size sheets of plywood, MDF, and acrylic — up to 1600 x 1000 mm in a single setup. This eliminates the need to reposition material between cuts, reducing production time and improving alignment accuracy for large batch work.
The 1610 series includes the Wattsan FOX (Fire Overwatch Expert) system as standard. FOX monitors the working area continuously and triggers an immediate loud alarm upon detecting ignition or smoke, minimizing downtime and protecting both the machine and the workshop from fire damage.
