Wattsan 1610 DUOS Conveyor
Price excl. VAT

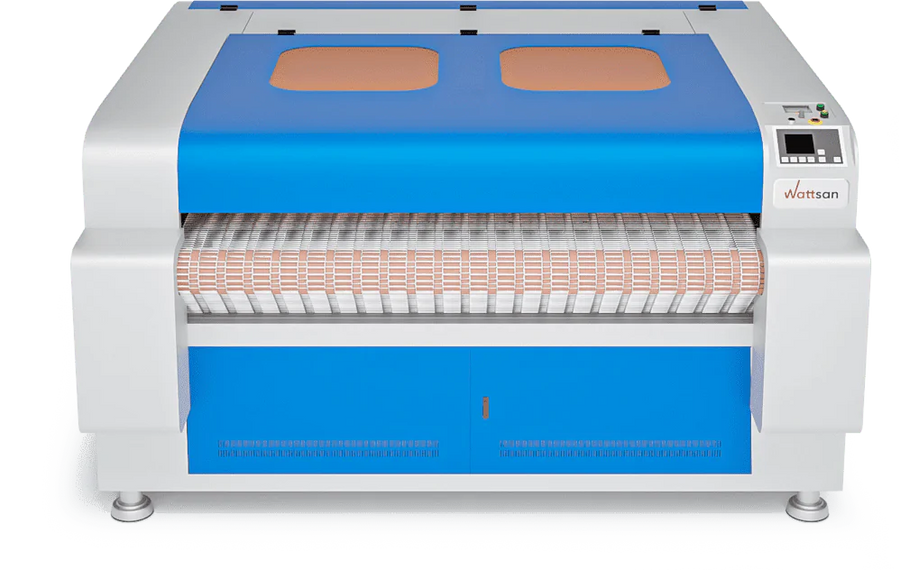

Laser cutter machine for fabric and leather with conveyor system and dual laser tubes.
| Working area | 1600 x 1000 mm |
|---|---|
| Laser tube power | 100-120 W |
| Max. speed | 500 mm |
| Dimensions | 2200 x 2080 x 1100 mm |
| Net weight | 650 kg |
| Package size | 2320 x 2200 x 1250 mm |
| Package weight | 770 kg |
Produkta funkcijas
The conveyor system enables continuous roll-to-roll processing of fabric, leather, film, and other flexible materials without manual repositioning. The motorized conveyor feeds material through the machine automatically, dramatically increasing throughput for large-volume textile and leather cutting operations.
The DUOS configuration adds a second synchronous laser head that works in parallel with the first, cutting two identical parts simultaneously. This effectively doubles production output without increasing cycle time. Both heads maintain identical focus and alignment, ensuring consistent quality across all parts.
The 1610 series handles full-size sheets of plywood, MDF, and acrylic — up to 1600 x 1000 mm in a single setup. This eliminates the need to reposition material between cuts, reducing production time and improving alignment accuracy for large batch work.
The 1610 series includes the Wattsan FOX (Fire Overwatch Expert) system as standard. FOX monitors the working area continuously and triggers an immediate loud alarm upon detecting ignition or smoke, minimizing downtime and protecting both the machine and the workshop from fire damage.
