Wattsan

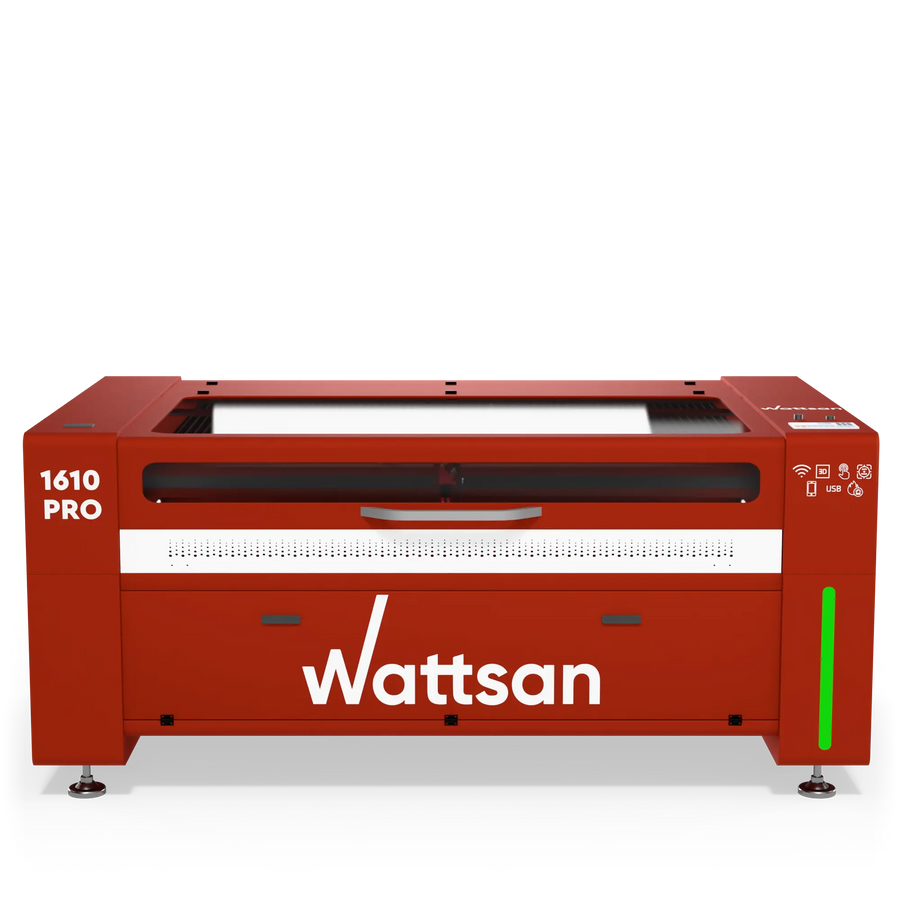

Wattsan 1610 PRO (2025)
CO2 CNC laser cutting and engraving machine, Pro series, with Lasea F4 / Reci W4 tube and 25 mm mirror diameter.
| Working area | 1600 x 1000 mm |
|---|---|
| Laser tube power | 100-120 W |
| Max. speed | up to 1000 mm |
| Dimensions | 2250 x 1660 x 960 mm |
Additional information: Laser tube: Lasea F4, Reci W4; Mirror Diameter: 25 mm; ZnSe lens: ZnSe D20 f50; Focus distance: 50 mm; Laser tube lifetime: 10000 h; Minimum engraving size: 1.5 x 1.5 mm
Product Features
The PRO series features Wattsan SAS (Safety Assurance System) with the FOX (Fire Overwatch Expert) module — a proprietary system that instantly detects smoke and fire in the working area and triggers a loud facility-wide alarm. This goes far beyond standard safety switches and is designed for industrial workshop environments.
The 6090 PRO uses servo motors with real-time position feedback instead of standard steppers. This eliminates missed steps, improves positioning accuracy to ±0.03 mm, and allows reliable operation at higher speeds — up to 1000 mm/s engraving speed — without loss of quality.
The PRO integrates a chiller directly into the machine body, keeping the system compact and eliminating external cooling equipment. The CNC-driven lift table supports up to 100 kg and maintains perfect focal distance automatically, reducing setup time between different material thicknesses.
All moving parts including the gantry are fully enclosed to block dust and ensure vibration-free operation. A protective belt inside the robust portal adds extra security. The smart control screen provides intuitive operation, and an ammeter allows precise real-time power monitoring during cutting.
The PRO series features advanced mirror mounts with height-adjustable laser heads, a beam combiner, and universal tube holders. Machine calibration is 30% faster than standard models — operators spend less time on alignment and tube replacement, increasing overall uptime and productivity.
