Wattsan

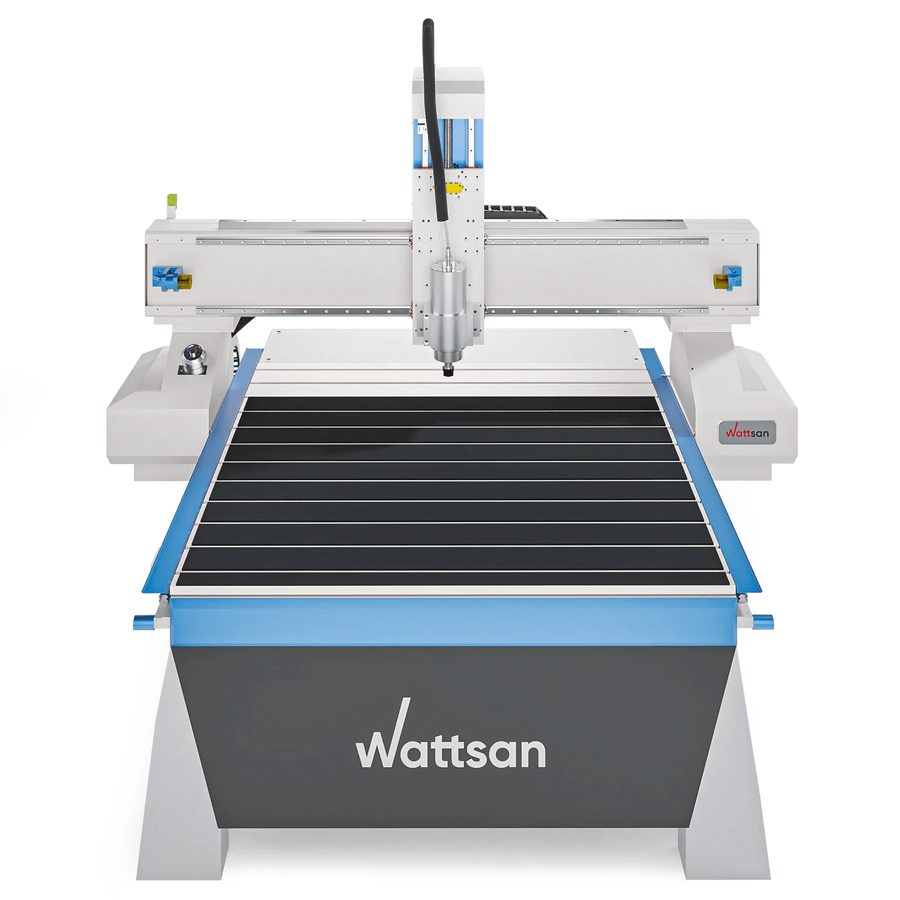

Wattsan A1 1313
CNC wood router machine, A1 series, mid-size work area for furniture and general production.
| Working area | 1300 x 1300 mm |
|---|---|
| Spindle power | 2.2 kW |
| Controller | RichAuto A11 |
| Weight | 540 kg |
| Machine dimensions | 2040 x 1970 x 1800 mm |
| Package size | Bed: 1500 x 1830 x 720 mm; Gantry: 1960 x 560 x 1040 mm |
| Package weight | Bed: 330 kg; Gantry: 220 kg |
Product Features
All Wattsan CNC routers are built on a welded steel frame annealed in a special furnace for stress relief. This heat treatment eliminates internal stresses from welding, ensuring the frame holds its geometry for 10+ years without warping under continuous production loads.
Wattsan routers use oversized ball screws on all axes. Compared to rack-and-pinion systems, ball screws deliver higher positioning accuracy, smoother motion, and support more powerful spindles. The reinforced Z-axis ball screw handles spindles up to 4.5 kW without flex or vibration.
All axes run on HIWIN profile linear guide rails — the industry standard for CNC precision. With four closed rows of bearings, HIWIN guides are 30% superior to alternatives in load capacity and rigidity. Rail recesses are robotically machined for consistent alignment across every machine.
The standard T-slot table accepts mechanical clamps, bolts, and holdbacks for versatile material fixation. A vacuum table can be added to securely hold sheet materials without clamps — especially useful for large sheets, thin materials, and small workpieces that are difficult to clamp conventionally.
Every Wattsan machine comes with a 1-year warranty and lifetime online support. Wattsan engineers train and assist over 100 clients monthly worldwide. On-site specialist visits are available for setup, training, or repair, and spare parts are available globally to minimize downtime.
