Wattsan

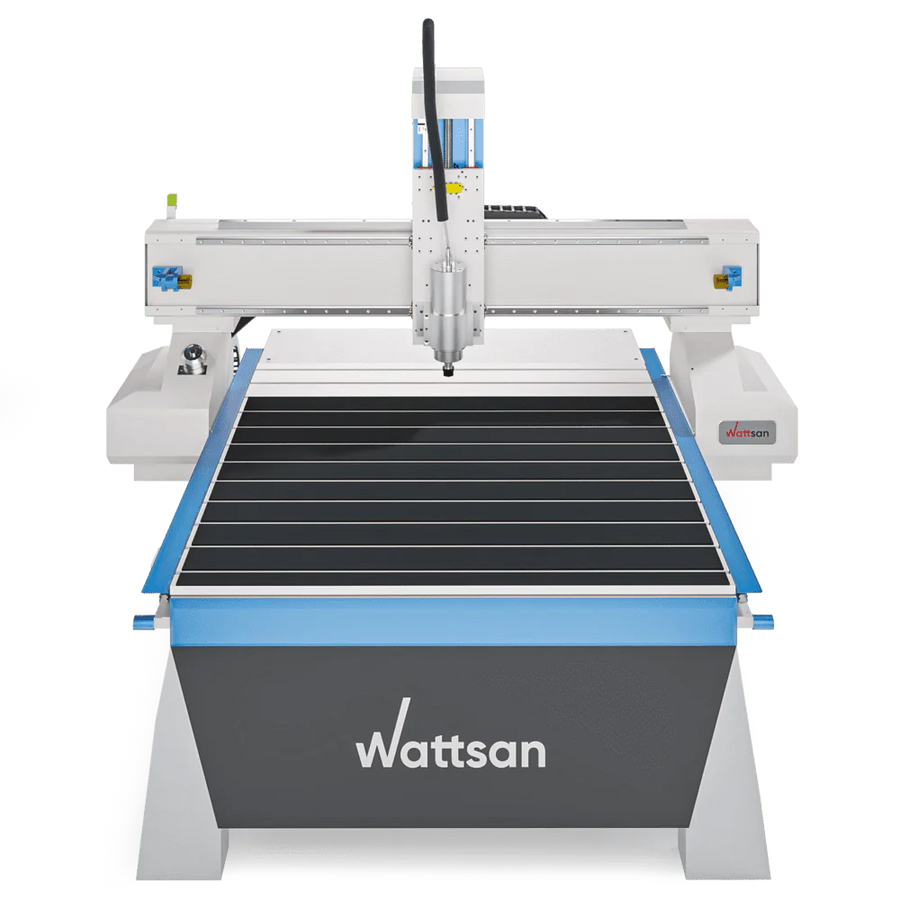

Wattsan A1 1616
CNC wood router machine, A1 series, large work area for bigger workpieces.
| Working area | 1600 x 1600 mm |
|---|---|
| Spindle power | 3.2 kW |
| Controller | RichAuto A11 |
| Weight | 620 kg |
| Machine dimensions | 2340 x 2270 x 1800 mm |
| Package size | Bed: 1780 x 2130 x 720 mm; Gantry: 2260 x 560 x 1040 mm |
| Package weight | Bed: 410 kg; Gantry: 270 kg |
Product Features
All Wattsan CNC routers are built on a welded steel frame annealed in a special furnace for stress relief. This heat treatment eliminates internal stresses from welding, ensuring the frame holds its geometry for 10+ years without warping under continuous production loads.
Wattsan routers use oversized ball screws on all axes. Compared to rack-and-pinion systems, ball screws deliver higher positioning accuracy, smoother motion, and support more powerful spindles. The reinforced Z-axis ball screw handles spindles up to 4.5 kW without flex or vibration.
All axes run on HIWIN profile linear guide rails — the industry standard for CNC precision. With four closed rows of bearings, HIWIN guides are 30% superior to alternatives in load capacity and rigidity. Rail recesses are robotically machined for consistent alignment across every machine.
The standard T-slot table accepts mechanical clamps, bolts, and holdbacks for versatile material fixation. A vacuum table can be added to securely hold sheet materials without clamps — especially useful for large sheets, thin materials, and small workpieces that are difficult to clamp conventionally.
Every Wattsan machine comes with a 1-year warranty and lifetime online support. Wattsan engineers train and assist over 100 clients monthly worldwide. On-site specialist visits are available for setup, training, or repair, and spare parts are available globally to minimize downtime.
Product showcase
