Wattsan FL ST
Price excl. VAT

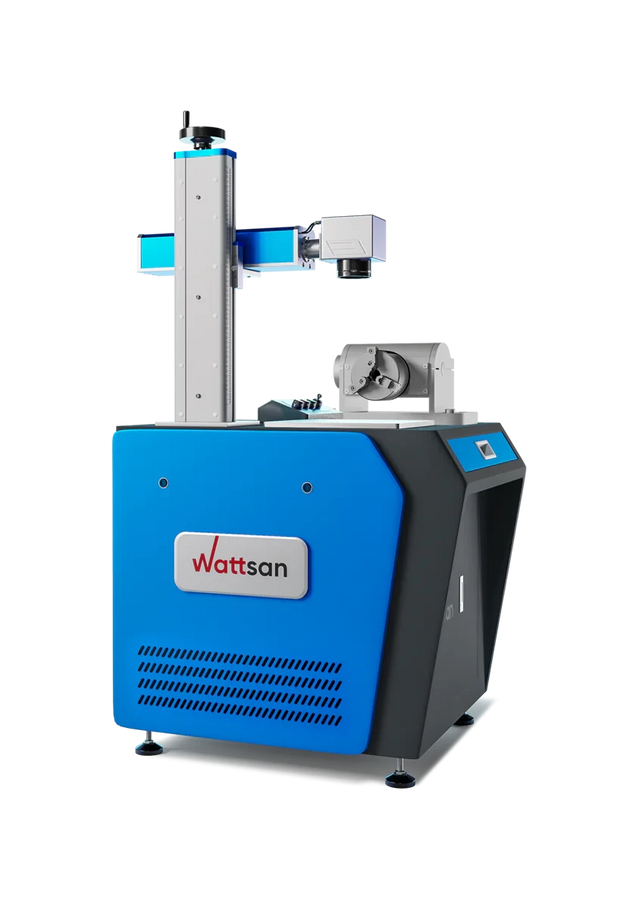

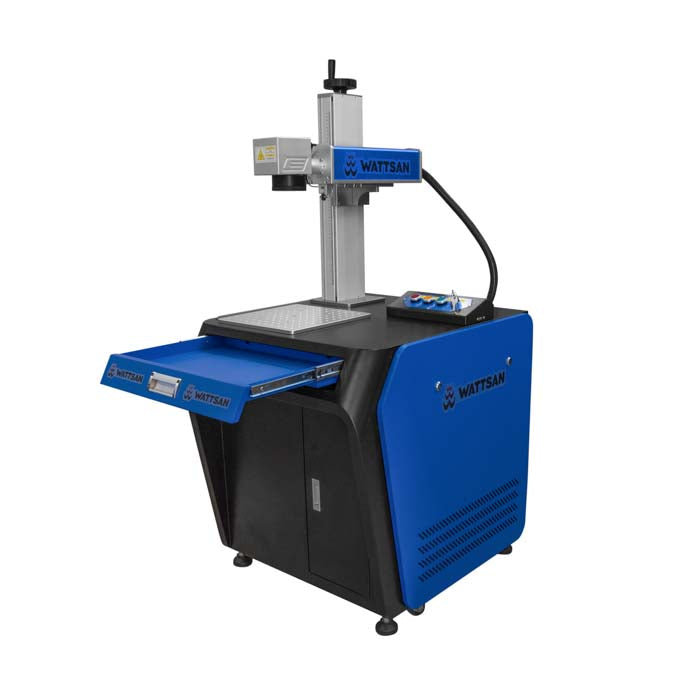

The Wattsan FL ST is a floor-standing fiber laser marker on an adjustable column, designed for marking large, tall or irregularly shaped objects that cannot be placed under a tabletop unit. With a 200×300 mm working area and 20–100W Raycus/IPG/MAX laser source at 160 kg, the stand provides a stable platform for high-volume marking of pipes, cylinders, machine parts and large metal panels. Available in standard R series and MOPA J series for full marking capability.
Produkta funkcijas
Wattsan laser markers run EzCad2 or EzCad3 — the industry standard for fiber and UV laser marking. Supports vector and bitmap marking, barcode and QR code generation, serial number automation, DXF/AI/BMP import, and rotary axis control. The intuitive interface allows setting up new jobs in minutes without programming knowledge.
Wattsan markers use laser sources from Raycus, JPT and MAX Photonics — the leading Chinese manufacturers whose components are used in machines from TRUMPF, IPG and Coherent. The R series (standard fiber) delivers consistent power for deep engraving and annealing. The J MOPA series (JPT M7) adds pulse width control from 2 to 500 ns, enabling color marking on stainless steel, black marking on aluminum, and fine detail at very low power without burning.
The FL (fiber laser) series operates at 1064 nm wavelength, absorbed efficiently by metals. It marks stainless steel, aluminum, brass, copper, carbon steel, titanium, gold, silver, and also anneals tool steel to black without material removal. At higher power it deep-engraves. Non-metals: leather, rubber, some plastics. The MOPA variant (J series) adds color marking on stainless steel and fine grayscale on aluminum.
The ST (Stand Type) mounts the laser head on a height-adjustable column, raising the working field above the table surface. This allows marking directly on large, tall or irregularly shaped objects — pipes, cylinders, assembled machinery, large panels — without removing them from the production line. The column is stable and rigid, maintaining Z-axis accuracy even at full extension. Column height is adjustable from 0 to 800 mm.
