Wattsan
Wattsan FL TT
Price excl. VAT

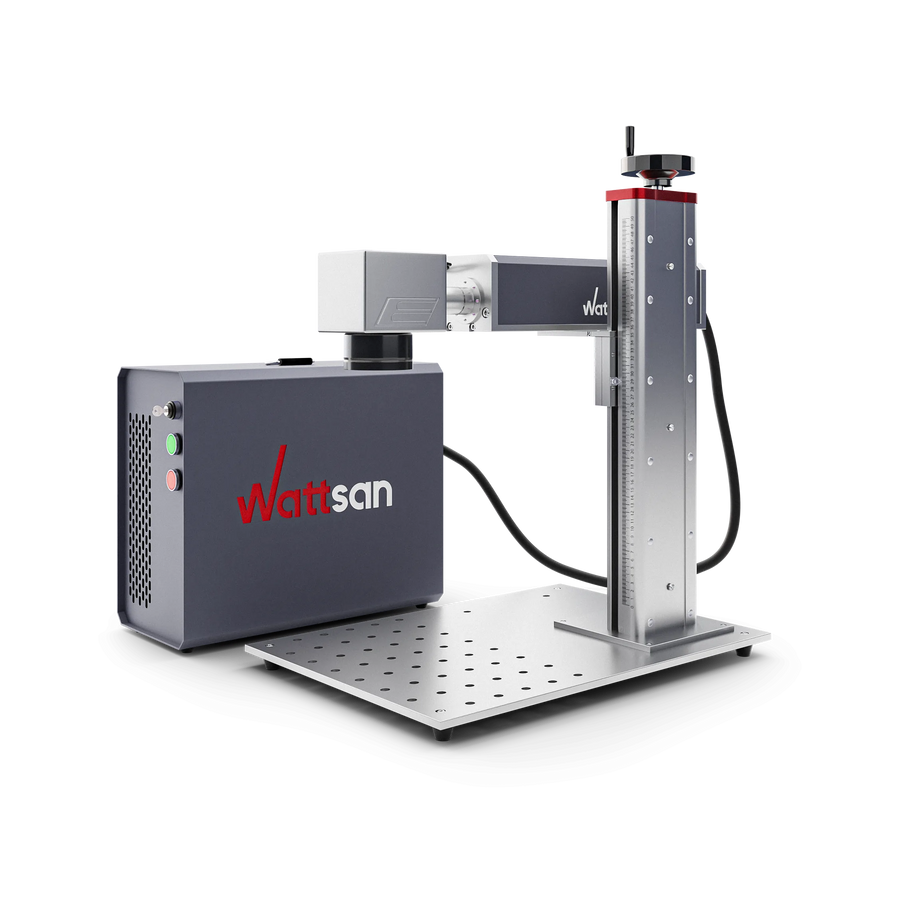

Wattsan FL TT ir kompakts galda šķiedru lāzera marķieris darbam ar metāliem un nemetāliem 24/7 režīmā. Ar 200×200 mm darba laukumu un Raycus/IPG/MAX lāzera avotu (20–100 W) tas ar augstu precizitāti marķē alumīniju, nerūsējošo tēraudu, misiņu, varu, oglekļa tēraudu, ādu un gumiju. Standarta R sērija ir piemērota dziļai gravēšanai; J MOPA sērija nodrošina pelēktoņu un krāsu marķēšanu uz nerūsējošā tērauda, kā arī smalku detaļu apstrādi ar zemu jaudu.
Produkta funkcijas
Wattsan laser markers run EzCad2 or EzCad3 — the industry standard for fiber and UV laser marking. Supports vector and bitmap marking, barcode and QR code generation, serial number automation, DXF/AI/BMP import, and rotary axis control. The intuitive interface allows setting up new jobs in minutes without programming knowledge.
Wattsan markers use laser sources from Raycus, JPT and MAX Photonics — the leading Chinese manufacturers whose components are used in machines from TRUMPF, IPG and Coherent. The R series (standard fiber) delivers consistent power for deep engraving and annealing. The J MOPA series (JPT M7) adds pulse width control from 2 to 500 ns, enabling color marking on stainless steel, black marking on aluminum, and fine detail at very low power without burning.
The FL (fiber laser) series operates at 1064 nm wavelength, absorbed efficiently by metals. It marks stainless steel, aluminum, brass, copper, carbon steel, titanium, gold, silver, and also anneals tool steel to black without material removal. At higher power it deep-engraves. Non-metals: leather, rubber, some plastics. The MOPA variant (J series) adds color marking on stainless steel and fine grayscale on aluminum.
Produkta prezentācija
