Wattsan

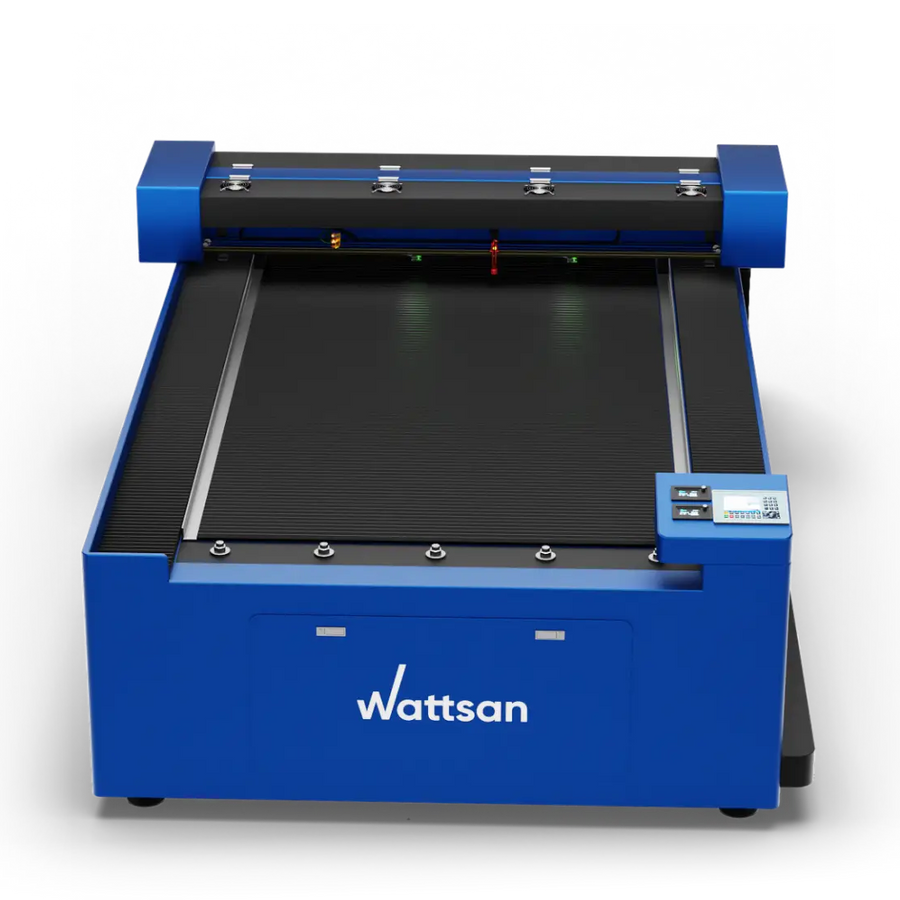

Wattsan Flat Bed 1630 PRO
CO2 laser engraving/cutting machine, Flat Bed Pro series, for large-format processing with high-power tube.
| Working area | 1600 x 3000 mm |
|---|---|
| Laser tube power | 360-700 W |
| Max. speed | 800 mm/s |
| Dimensions | 2400 x 4250 x 1000 mm |
| Net weight | 1200 kg |
| Package size | Bed: 4500 x 2400 x 900 mm; Gantry: 2400 x 990 x 950 mm |
Product Features
The PRO series features advanced mirror mounts with height-adjustable laser heads, a beam combiner, and universal tube holders. Machine calibration is 30% faster than standard models — operators spend less time on alignment and tube replacement, increasing overall uptime and productivity.
The Flat Bed series is designed for processing very large sheet materials in a single pass. The 1630 PRO offers a 1600 x 3000 mm working area while the 2030 PRO extends this to 3000 x 2000 mm. These machines eliminate the need to reposition material entirely, enabling continuous production of large signs, furniture panels, and architectural elements.
Flat Bed PRO models are equipped with high-power laser tubes (130–150W) capable of cutting through thick wood, acrylic, and foam in a single pass. The combination of large format and high power makes these machines ideal for architectural model making, large-scale sign production, and industrial panel cutting.
The 1610 series includes the Wattsan FOX (Fire Overwatch Expert) system as standard. FOX monitors the working area continuously and triggers an immediate loud alarm upon detecting ignition or smoke, minimizing downtime and protecting both the machine and the workshop from fire damage.
Product showcase
