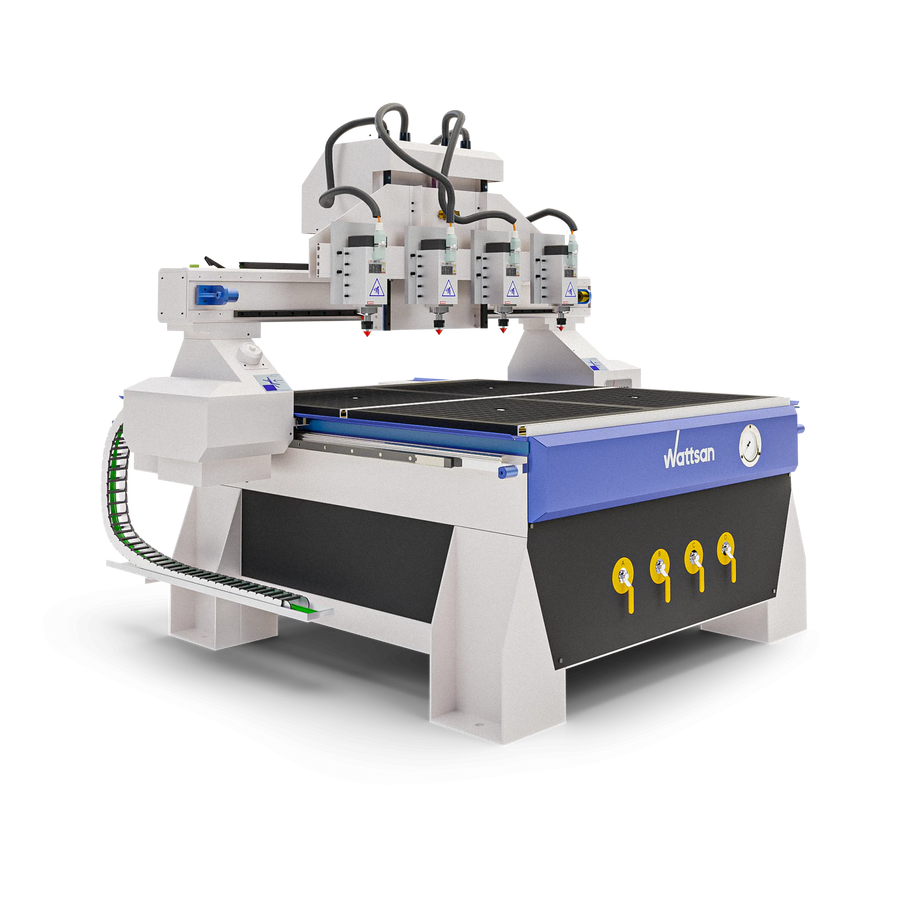

Wattsan M1 1313 S4
Price excl. VAT
CNC wood router machine, M1 S4 series, heavy-duty frame for large-scale production.
| Working area | 1300 x 1300 mm |
|---|---|
| Spindle power | 4.5 kW |
| Controller | DSP A11 |
| Weight | 1000 kg |
| Machine dimensions | 2200 x 2200 x 1890 mm |
Produkta funkcijas
The S4 configuration allows 1 to 4 spindles to operate simultaneously. Each spindle can move beyond the table edge to machine end-grain and workpiece ends without repositioning. This multiplies production speed up to 4x for repeated small parts such as chair legs, balusters, and panel components.
All Wattsan CNC routers are built on a welded steel frame annealed in a special furnace for stress relief. This heat treatment eliminates internal stresses from welding, ensuring the frame holds its geometry for 10+ years without warping under continuous production loads.
Wattsan routers use oversized ball screws on all axes. Compared to rack-and-pinion systems, ball screws deliver higher positioning accuracy, smoother motion, and support more powerful spindles. The reinforced Z-axis ball screw handles spindles up to 4.5 kW without flex or vibration.
The M1 series gantry has 300 mm clearance and thick-wall profile — 20% more Z-travel than A1. It supports up to 8 simultaneous spindles and planetary gearboxes deliver high torque for hardwood and aluminum machining. Frame rigidity is guaranteed for 10 years without distortion.
Every Wattsan machine comes with a 1-year warranty and lifetime online support. Wattsan engineers train and assist over 100 clients monthly worldwide. On-site specialist visits are available for setup, training, or repair, and spare parts are available globally to minimize downtime.
