Wattsan

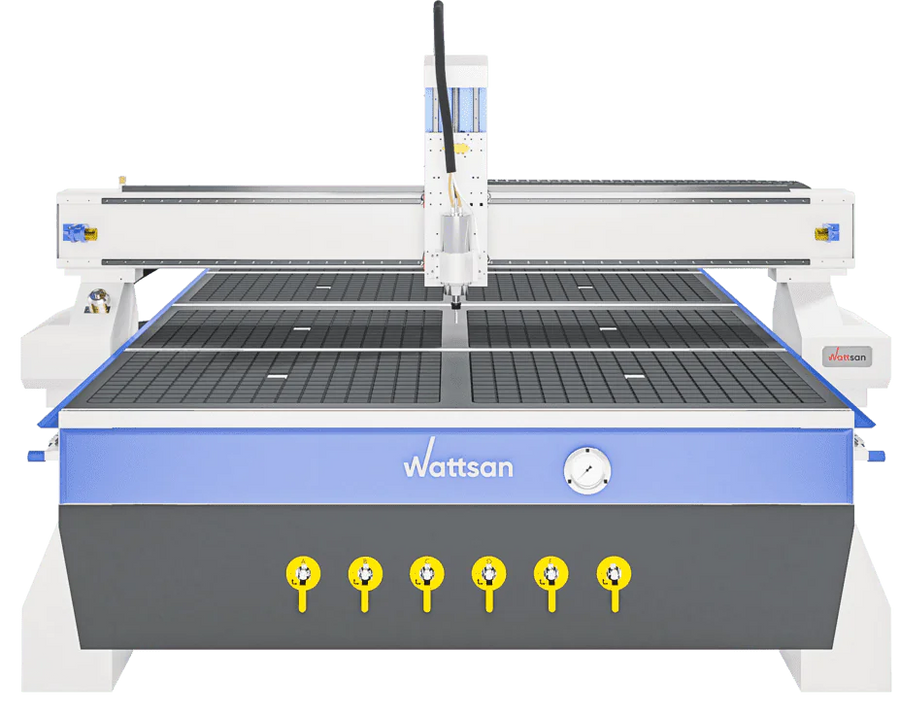

Wattsan M1 2030
2x3 CNC router machine, M1 series, large-format bed for high-volume industrial production.
| Working area | 2000 x 3000 mm |
|---|---|
| Spindle power | 6 kW |
| Controller | RichAuto A11 |
| Weight | 1140 kg |
| Machine dimensions | 3850 x 2890 x 2000 mm |
| Package size | Bed: 2220 x 3700 x 750 mm; Gantry: 2700 x 580 x 1350 mm |
| Package weight | Bed: 910 kg |
Product Features
The M1 2030 (2000 x 3000 mm) and M1 2040 (2000 x 4000 mm) handle full-sheet panels and extra-large workpieces in a single setup. Equipped with 6 kW spindles and DSP A11 or RichAuto F7324 controllers, these machines are built for high-volume door, furniture, and architectural panel production.
All Wattsan CNC routers are built on a welded steel frame annealed in a special furnace for stress relief. This heat treatment eliminates internal stresses from welding, ensuring the frame holds its geometry for 10+ years without warping under continuous production loads.
Wattsan routers use oversized ball screws on all axes. Compared to rack-and-pinion systems, ball screws deliver higher positioning accuracy, smoother motion, and support more powerful spindles. The reinforced Z-axis ball screw handles spindles up to 4.5 kW without flex or vibration.
The M1 series gantry has 300 mm clearance and thick-wall profile — 20% more Z-travel than A1. It supports up to 8 simultaneous spindles and planetary gearboxes deliver high torque for hardwood and aluminum machining. Frame rigidity is guaranteed for 10 years without distortion.
Every Wattsan machine comes with a 1-year warranty and lifetime online support. Wattsan engineers train and assist over 100 clients monthly worldwide. On-site specialist visits are available for setup, training, or repair, and spare parts are available globally to minimize downtime.
