Wattsan

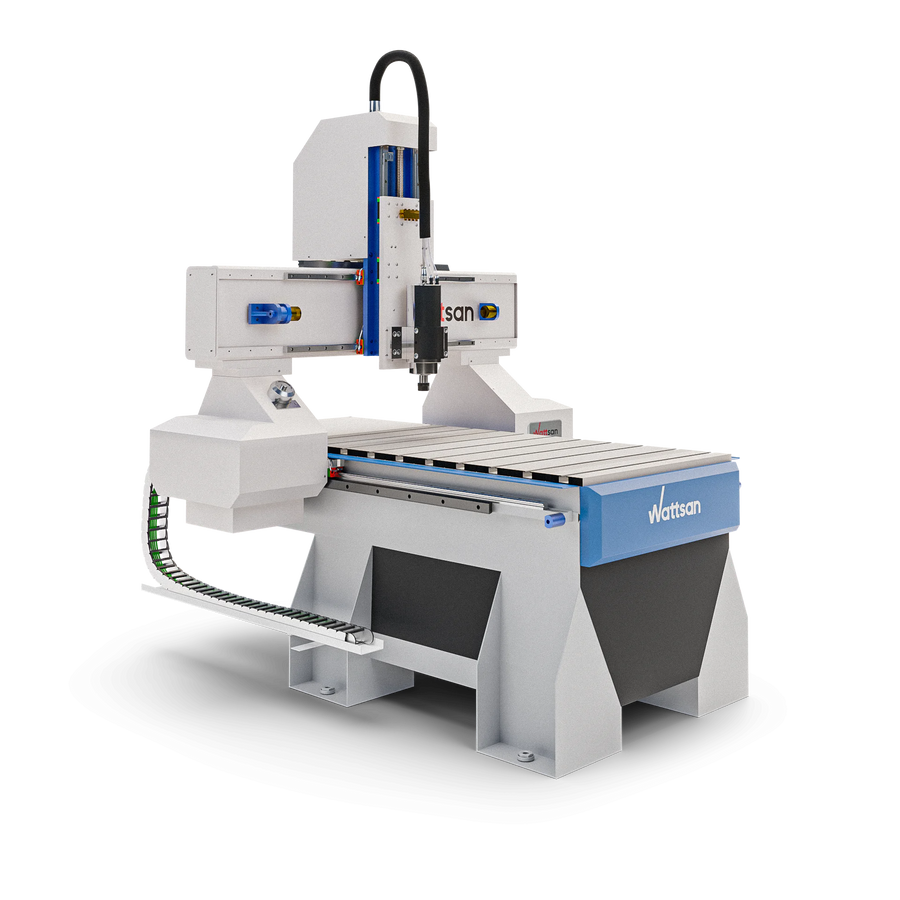

Wattsan M1 6090
CNC router machine 6090, 3-axis, M1 series for wood, plywood, and plastic processing.
| Working area | 900 x 600 mm |
|---|---|
| Spindle power | 2.2 kW |
| Controller | RichAuto A11 |
| Weight | 500 kg |
| Machine dimensions | 1640 x 1390 x 2000 mm |
| Package size | 1500 x 1400 x 1850 mm |
| Package weight | 510 kg |
Product Features
All Wattsan CNC routers are built on a welded steel frame annealed in a special furnace for stress relief. This heat treatment eliminates internal stresses from welding, ensuring the frame holds its geometry for 10+ years without warping under continuous production loads.
Wattsan routers use oversized ball screws on all axes. Compared to rack-and-pinion systems, ball screws deliver higher positioning accuracy, smoother motion, and support more powerful spindles. The reinforced Z-axis ball screw handles spindles up to 4.5 kW without flex or vibration.
The M1 series gantry has 300 mm clearance and thick-wall profile — 20% more Z-travel than A1. It supports up to 8 simultaneous spindles and planetary gearboxes deliver high torque for hardwood and aluminum machining. Frame rigidity is guaranteed for 10 years without distortion.
All axes run on HIWIN profile linear guide rails — the industry standard for CNC precision. With four closed rows of bearings, HIWIN guides are 30% superior to alternatives in load capacity and rigidity. Rail recesses are robotically machined for consistent alignment across every machine.
Every Wattsan machine comes with a 1-year warranty and lifetime online support. Wattsan engineers train and assist over 100 clients monthly worldwide. On-site specialist visits are available for setup, training, or repair, and spare parts are available globally to minimize downtime.
