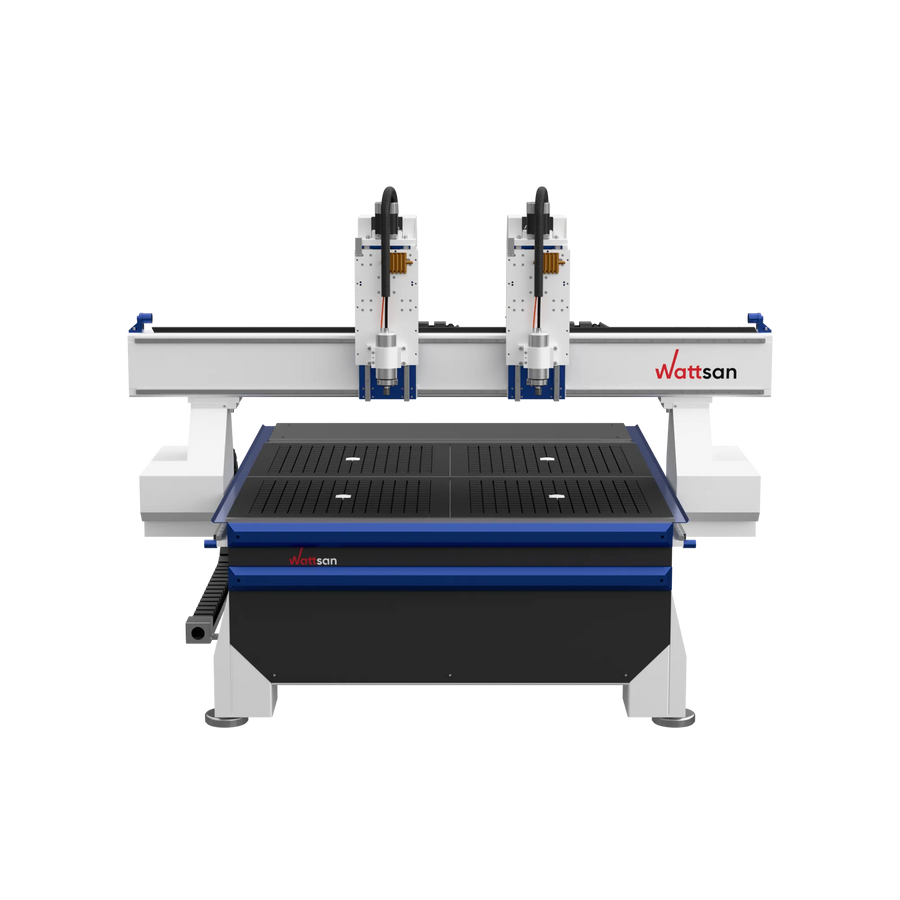

Wattsan M1 S2 X
CNC wood router machine with two independent spindles (S2 X), M1 series, RichAuto F7324 controller for doubled productivity.
| Working area | 1600 x 1600 mm |
|---|---|
| Spindle power | 4.5 kW (x2) |
| Controller | RichAuto F7324 |
| Weight | 840 kg |
| Package size | 2340 x 2540 x 2000 mm |
Product Features
The M1 S2 X configuration adds a second fully independent spindle that processes a separate section of the table simultaneously. This doubles production output for symmetrical parts such as cabinet doors, chair legs, and decorative panels without requiring a second machine.
All Wattsan CNC routers are built on a welded steel frame annealed in a special furnace for stress relief. This heat treatment eliminates internal stresses from welding, ensuring the frame holds its geometry for 10+ years without warping under continuous production loads.
Wattsan routers use oversized ball screws on all axes. Compared to rack-and-pinion systems, ball screws deliver higher positioning accuracy, smoother motion, and support more powerful spindles. The reinforced Z-axis ball screw handles spindles up to 4.5 kW without flex or vibration.
The M1 series gantry has 300 mm clearance and thick-wall profile — 20% more Z-travel than A1. It supports up to 8 simultaneous spindles and planetary gearboxes deliver high torque for hardwood and aluminum machining. Frame rigidity is guaranteed for 10 years without distortion.
Every Wattsan machine comes with a 1-year warranty and lifetime online support. Wattsan engineers train and assist over 100 clients monthly worldwide. On-site specialist visits are available for setup, training, or repair, and spare parts are available globally to minimize downtime.
